Hot Stamping Machine Robot Integration
<<Previous Page 2 of 12 Next>>

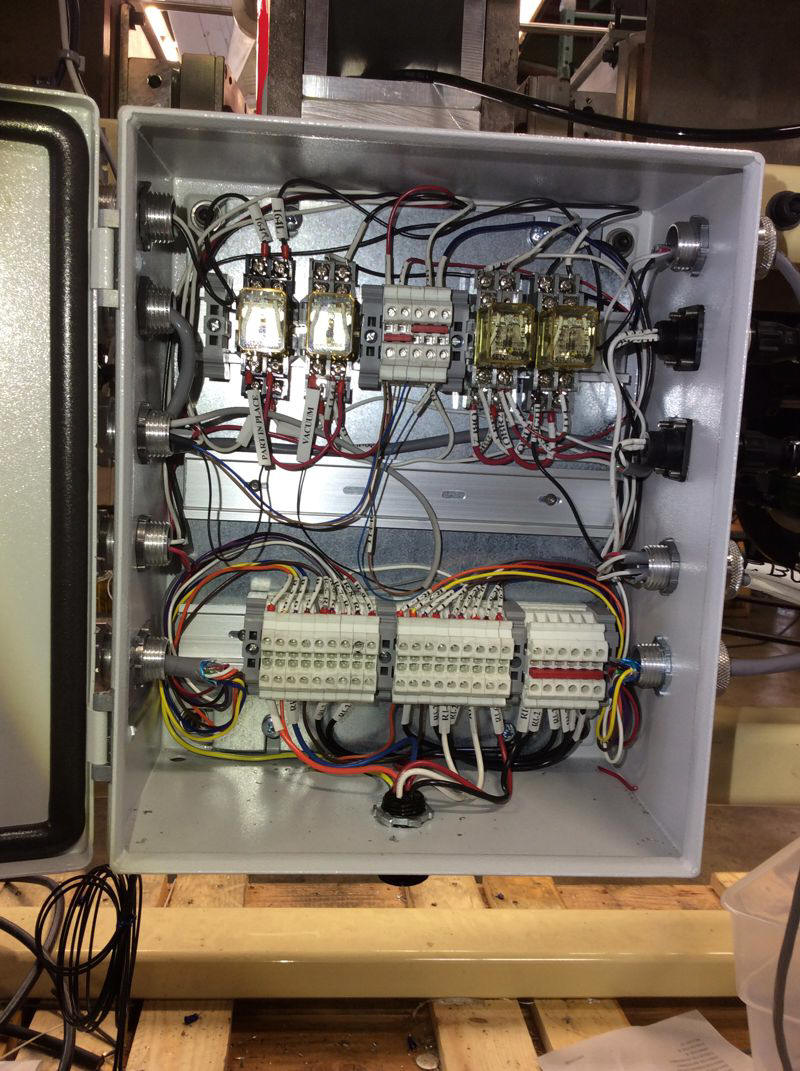

Robot Interface
The Robot Interface varies with the type of Robot being used.  Most Robots Require the following:
1. Signal from Robot to Cycle Hot Stamp Machine. Normally a 24vdc signal.
This signal must be maintained until a Print head down signal is sent from the Hot Stamp Machine.
2. Print Head Down signal.  A dry contact form the Hot Stamp Machine when the Print Head reached the Head down position.
3. Ready Signal to load. A dry contact for the Hot Stamp Machine when it is ready to load.
4. Ready Signal to unload. A dry contact for the Hot Stamp Machine when it is ready to unload.
5. Part in Place Signal. A dry contact form the Hot Stamp Machine when then there is a part in place.
Interface

Light Bar
Robot Interface
Supply Air Sensor
Foil Supply Low Sensor
Foil Missing Sensor
Foil Take Up Full Sensor
Part In Place Sensor
Print Head Up Sensor
Part Vacuum Sensor
Electronic Pressure Regulator
Menu Driven Part Setup
PLC Print Head Temperature Control
