Hot Stamping Machine Control Box
Head Only Installation Page 3
Previous Page
Next Page

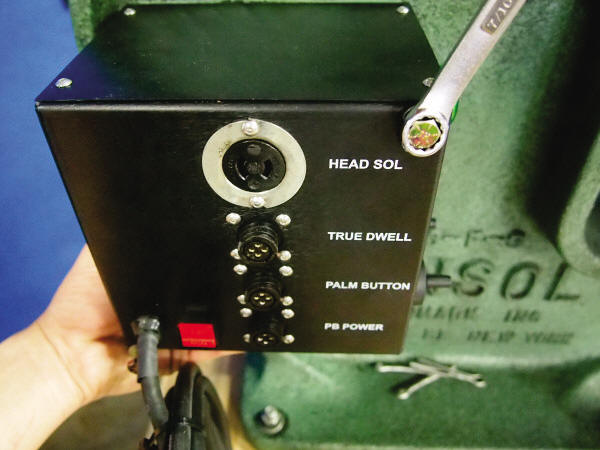

Install new box.
Using the new screws provided mount the box where the old box was.
Plug the two pin plug from the air solenoid into the new box.
