Hot Stamping Machine Control Box
Omron Temperature Controller Replace RTD
Page 3
Previous Page
Next Page

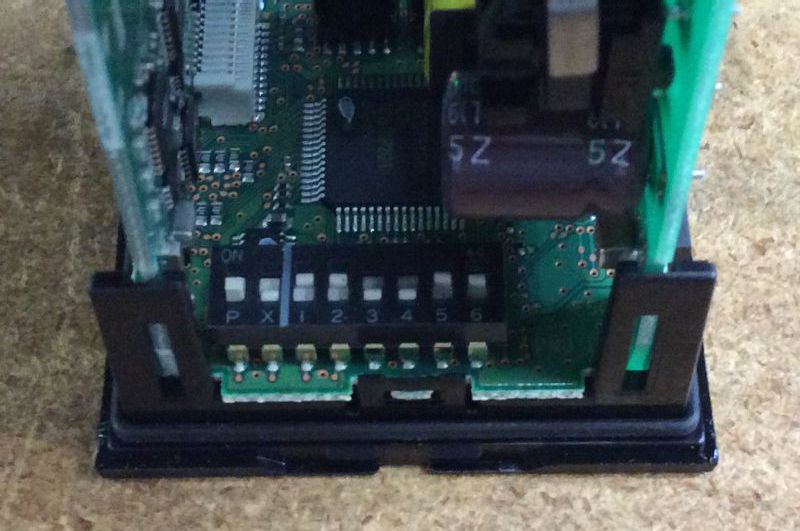

Use a small screw driver to set the dip switches on the new controller as shown.
Dip Switch Setup
RTD Probe
J Thermocouple
K Thermocouple
P.
OFF
X.
OFF
1.
ON
2.
ON
3.
OFF
4.
OFF
5.
ON
6.
ON
P.
OFF
X.
OFF
1.
ON
2.
ON
3.
OFF
4.
OFF
5.
OFF
6.
ON
P.
OFF
X.
OFF
1.
ON
2.
ON
3.
OFF
4.
OFF
5.
OFF
6.
ON
AFM Control Boxes are wired for RTD Probes.
Changing to a J or K thermocouple will require a change in the Box wiring.
Click here to see Drawing
Omron E5CSV Manual
Release Latch
Remove Controller
Set Dip Switches
Set Selector Switches
