Hot Stamping Machine Control Box
Head Only Installation Page 7
Previous Page  Next Page

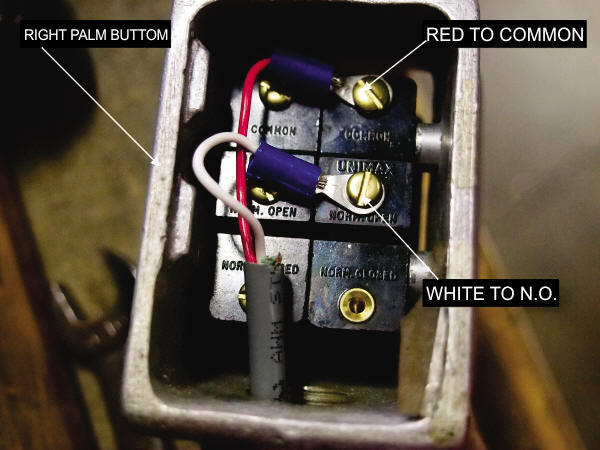

Right_PB_Wire
Install Cable #2 into the Right Palm Buttom then connect the
Red wire to the Common and the White wire to the Normaly Open
Once you have completed wiring install the palm buttons back
 on the machine and plug the palm button plug into the new box.
