AFM Engineering> Hot Stamping> Hot Stamping Projects> Hot Stamping Applications> Hot Stamping Bags> Bag Printing Paddle(Side Mounted)
Hot Stamping Bags

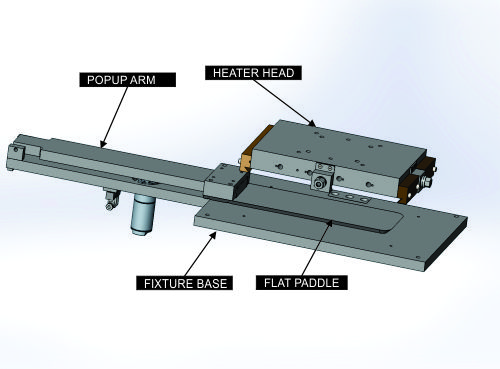

Bag Popup Fixture Mounted on Side with Paddle for Side Bag Loading
Bag Down
The Paddle System is the least expensive of all and works very well. It does have some drawbacks that the other
 system do not.  Paddles are not complex and can be made for a reasonable price.

The Paddle System is the hardest to make ready.  It requires make ready under the Paddle for the gussets
and bottom of the bag to make sure the print is good. It also may have problems with bags with handles or cords.
The Paddle System is harder to load without the operator burning their hands.  Small bags are loaded under the
heater head so the operator puts their hands under the heater head with the max clearance of the heater head up.
(3 3/4 inch)

Back Mount Popup Fixture
Back Mount with Paddle
Back Mount with Raised Paddle
Back Mount with Fixture
Side Mount Popup Fixture
Side Mount with Paddle
Side Mount with Raised Paddle
Side Mount with Fixture
