Hot Stamping Machine Control Box Electrical Drawings |

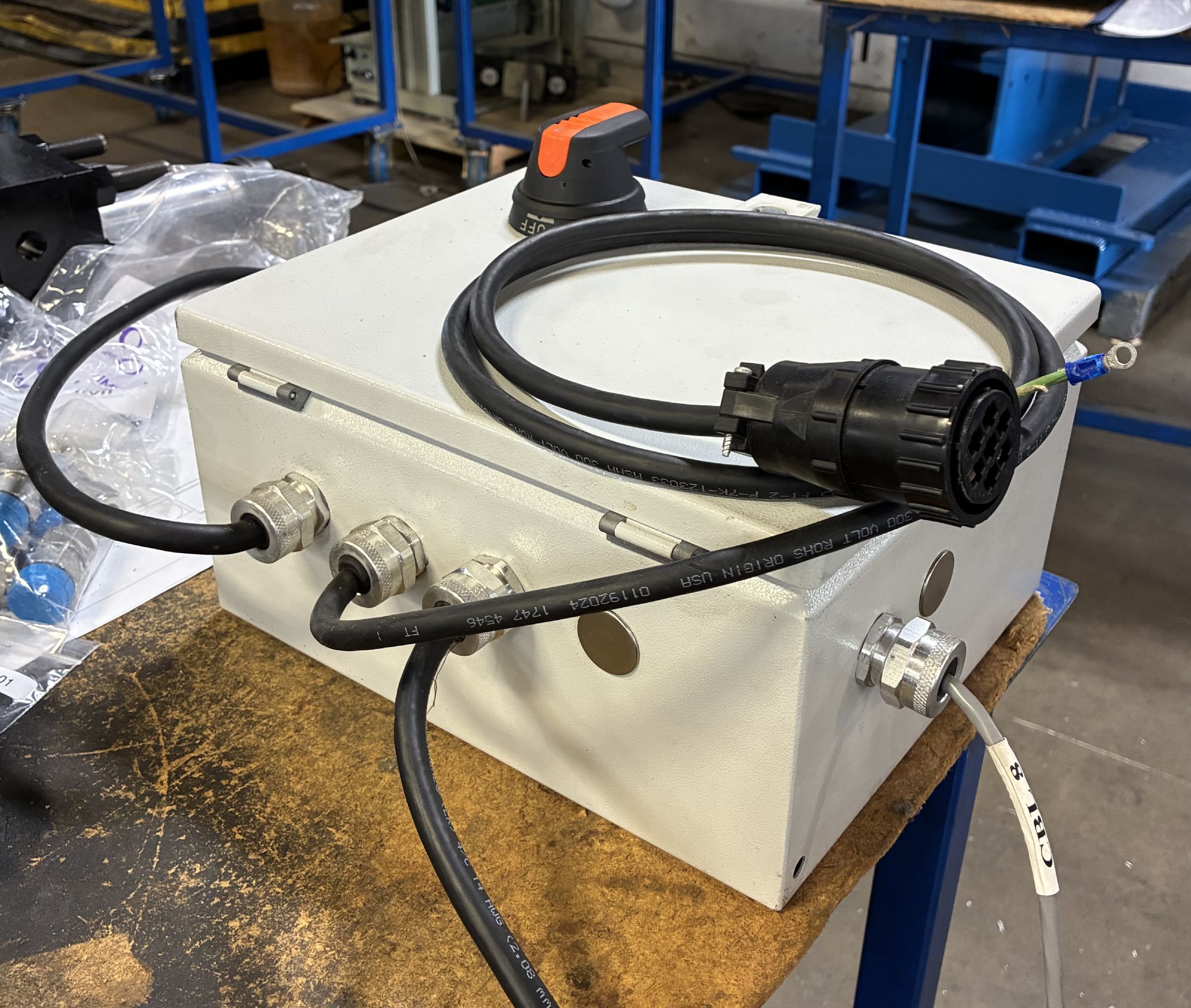

Cable 1 Power Cable |

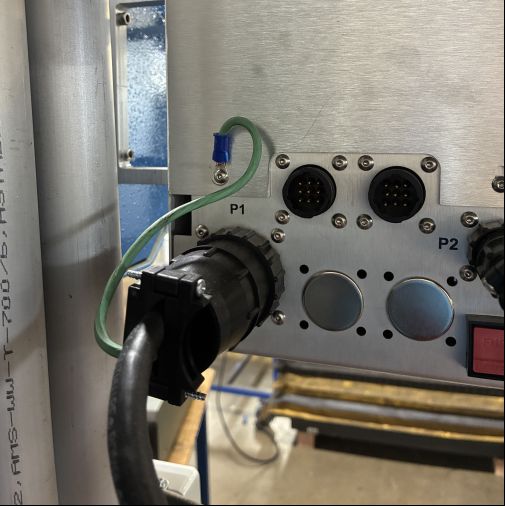

1. | Connects to control box P1 to Disconnect Box or directly to 120vac power. |
2. | Supplies 120vac to Control box |
3. | May Supply Power to Heaters Head |
|
Control Box Back |
Part # | Description | Manu PN | PDF Files | Sales Price | 104500 | Control Box Cable 1 POWER | 19000_Cable_1 POWER | View PDF 1 | $160.00 |
|
Part Number | Description | Qty | Units | Unit Sales Price | Total Sales Price | Manufacturer | Manu PN | VendorNo | PDF |
102848 | Pin, Female, for 7pin Plug | 2 | EA | $9.28 | $22.04 | AMP | 66740-8 | ALLIED | View PDF 1 | |
102876 | Plug, 7pin, Strain Relief | 1 | EA | $9.65 | $17.37 | AMP | 207774-3 | NEWARK | View PDF 1 | |
102878 | Plug, 7 Pin, Male | 1 | EA | $5.02 | $9.04 | AMP | 206136-1 | NEWARK | View PDF 1 | |
Total Parts Price | | | | | $48.45 | | | | |
|
|
