Hot Stamping Machine Control Box
Electrical Drawings. |

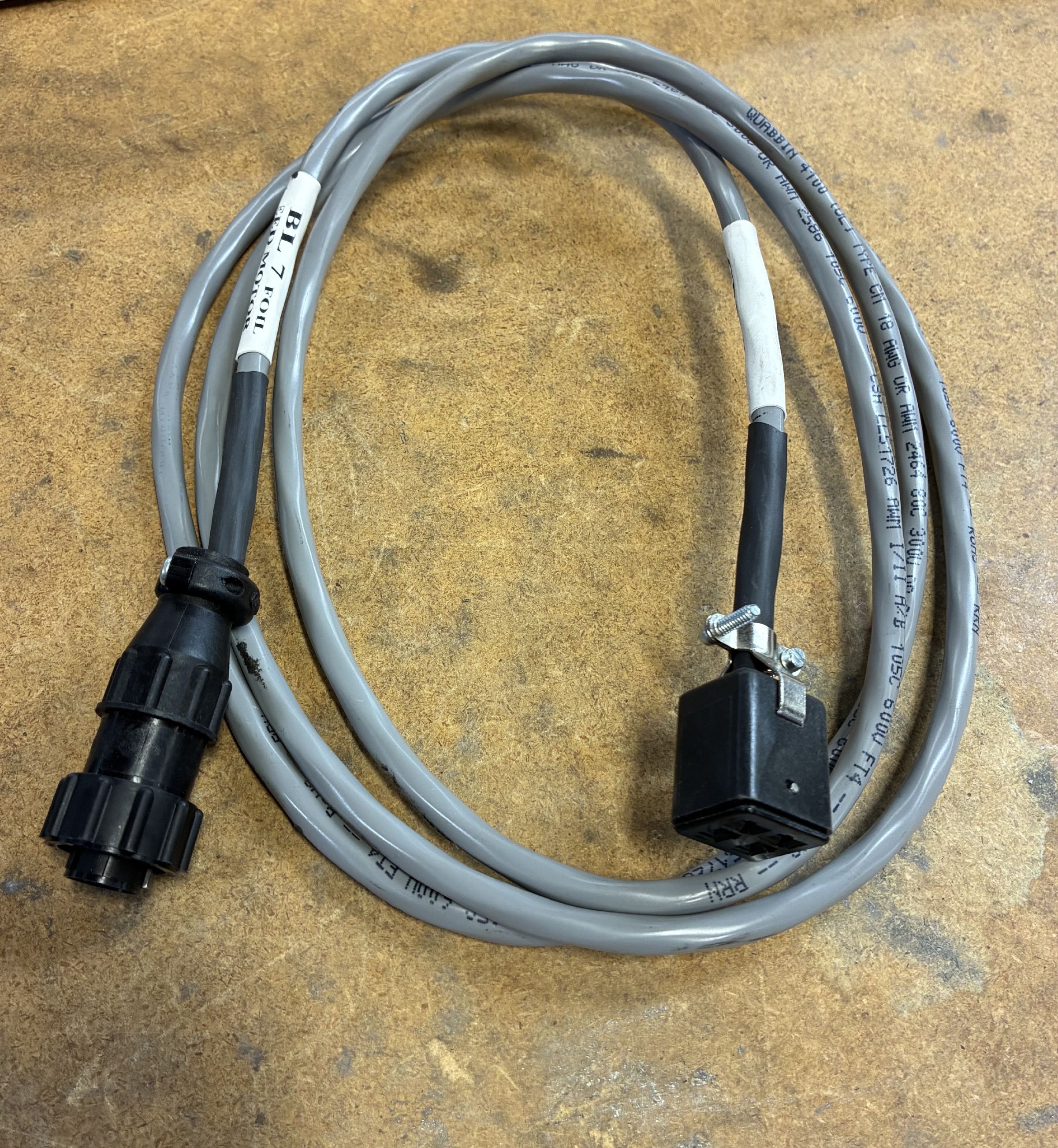

| Cable 7 90 to 130 vac output Motor Cable. |

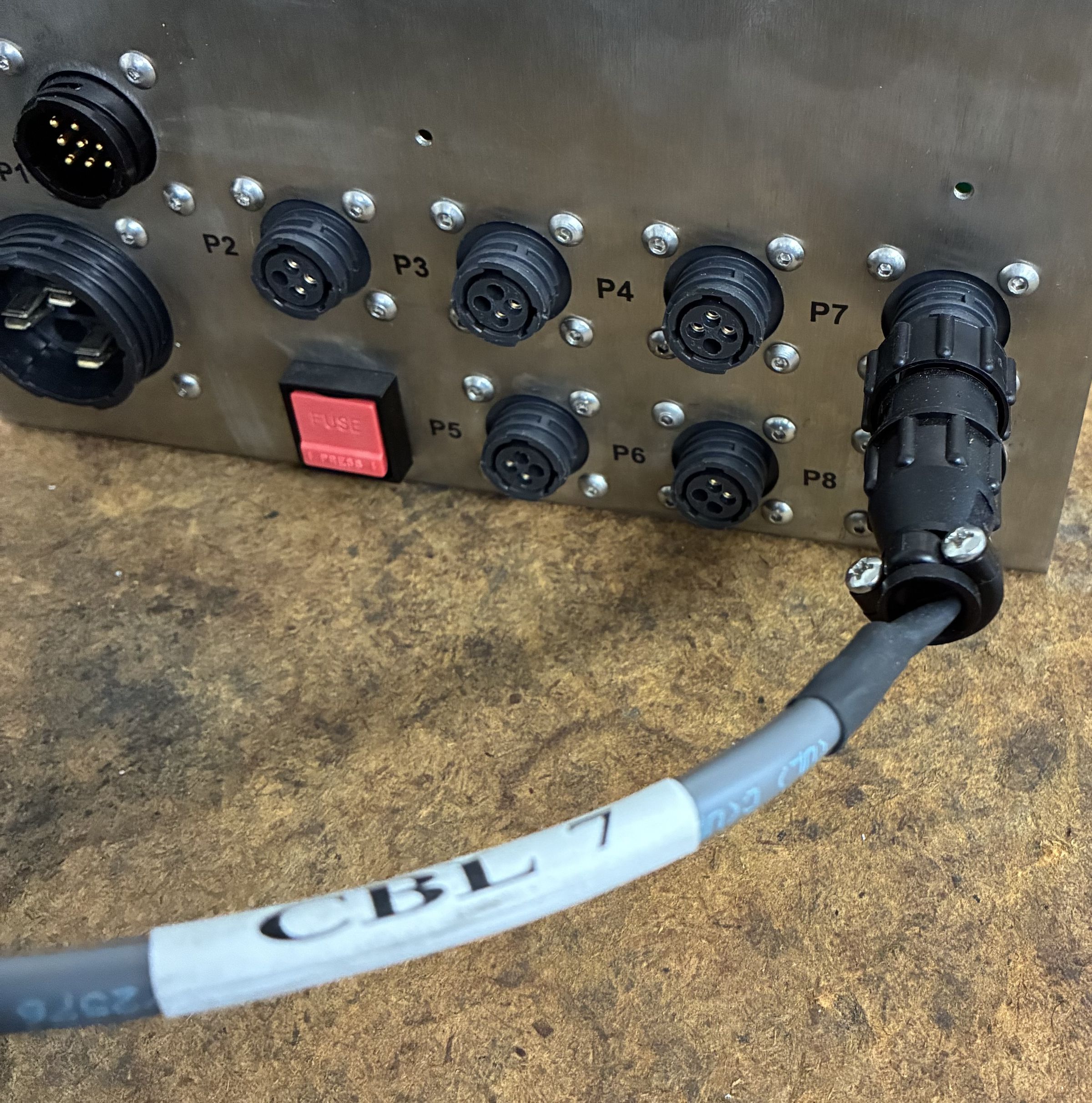

| 1. | Connects to control box P7 to 4 pin motor plug. |

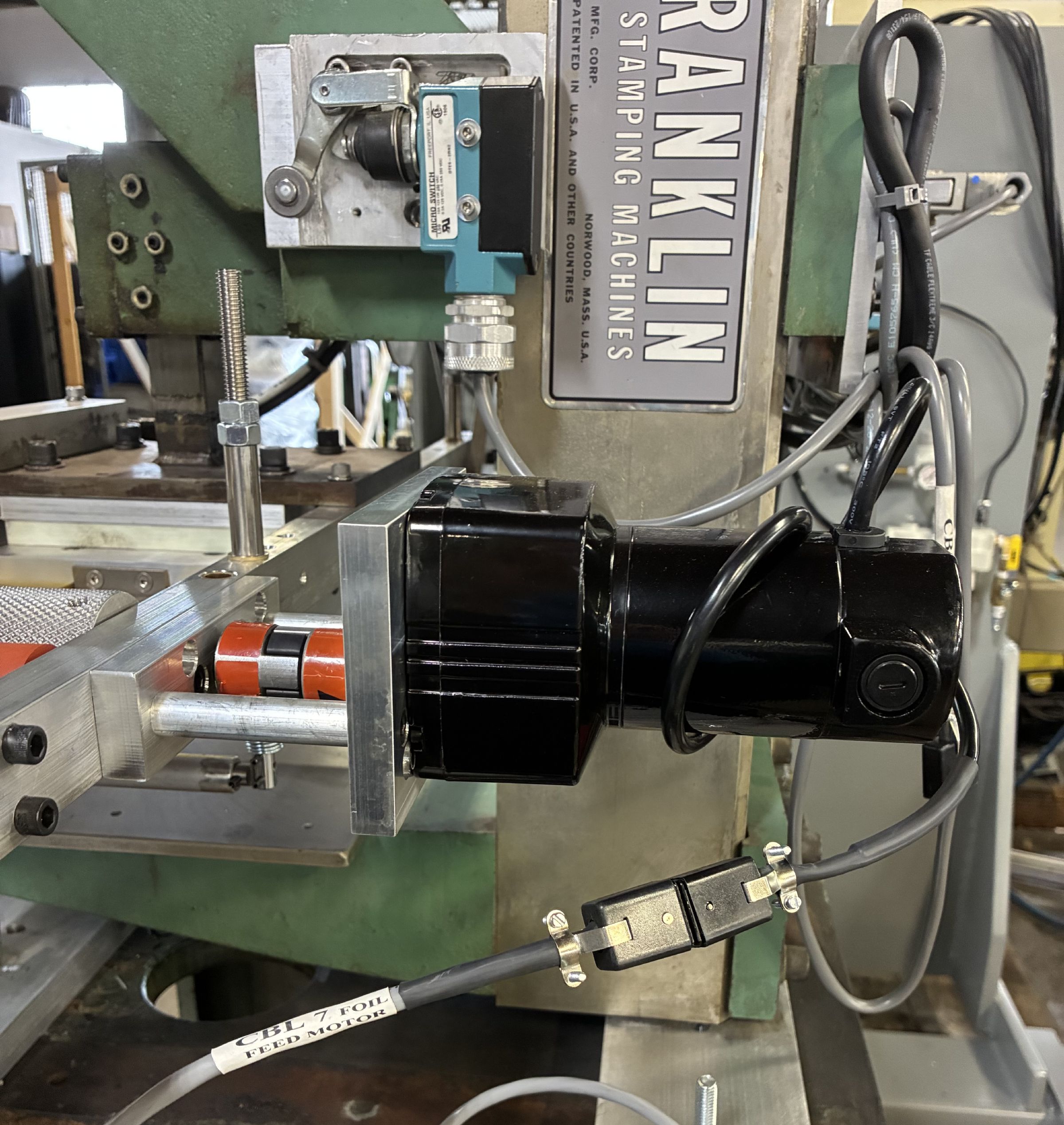

| 2. | Output for 90 to 130 vdc motor. |
|
| Part # | Description | Manu PN | PDF Files | Sales Price | | 104508 | Control Box Cable 6 120VAC OUT | 19000_Cable_6_120VAC_OUT | View PDF 1 | $160.00 |
|
| Part Number | Description | Qty | Units | Unit
Sales Price | Total
Sales Price | Manufacturer | Manu PN | VendorNo | PDF |
| 100124 | Pin, Male, Round | 3 | EA | $5.28 | $9.51 | AMP | 202236-3 | CIRCOMP | View PDF 1 | |
| 100370 | Plug, 4pin, Strain Relief | 1 | EA | $2.95 | $6.10 | AMP | 1-206062-6 | CIRCOMP | View PDF 1 | |
| 100388 | Plug, 4pin, Male | 1 | EA | $2.10 | $4.52 | AMP | 206429-1 | CIRCOMP | View PDF 1 | |
| Total Parts Price | | | | | $20.13 | | | | |
|
|
