Hot Stamping Machine Control Box
Electrical Drawings |
| Cable 8 12vac output to Solid State Relay Cable |
| Price $160.00 EA |

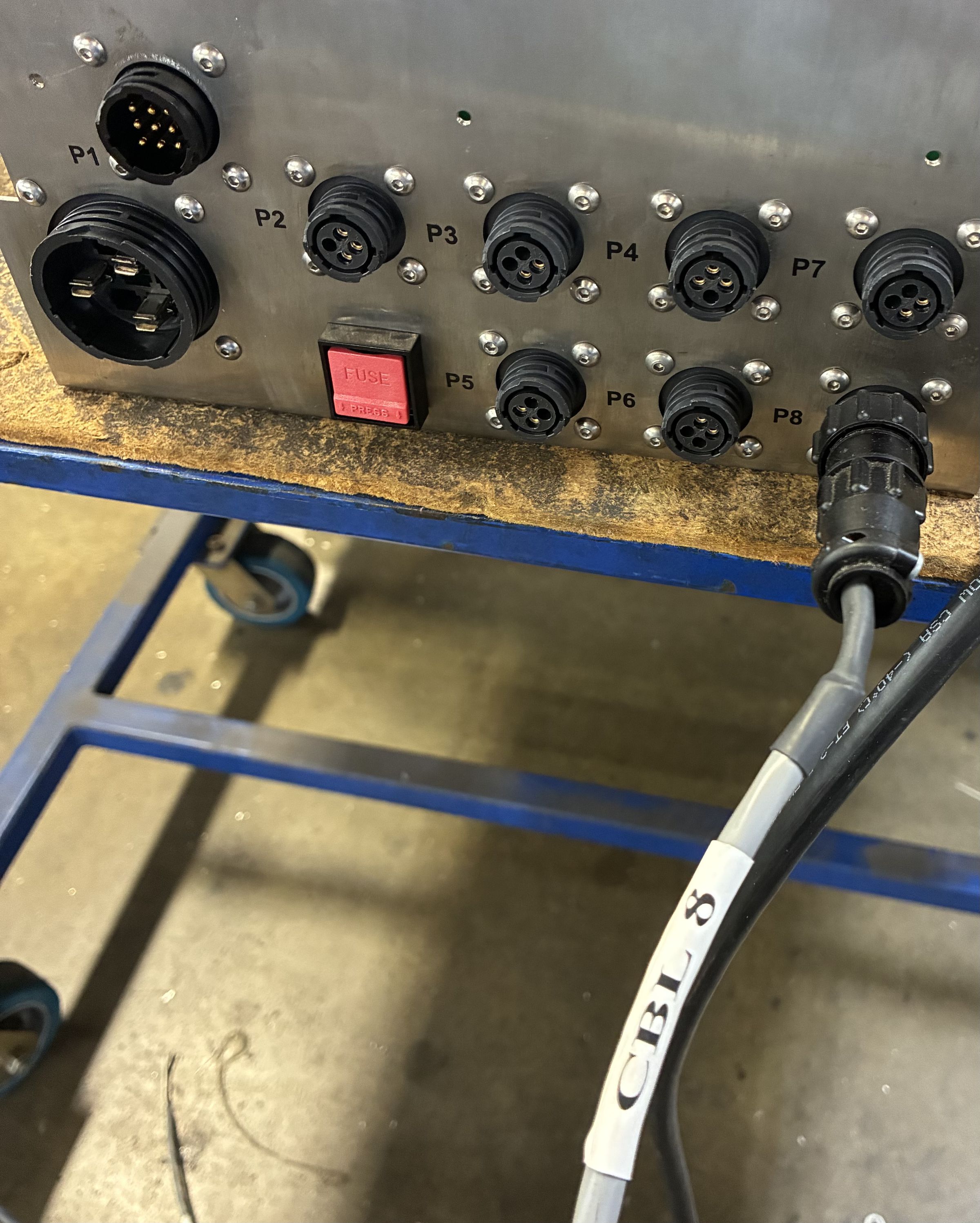

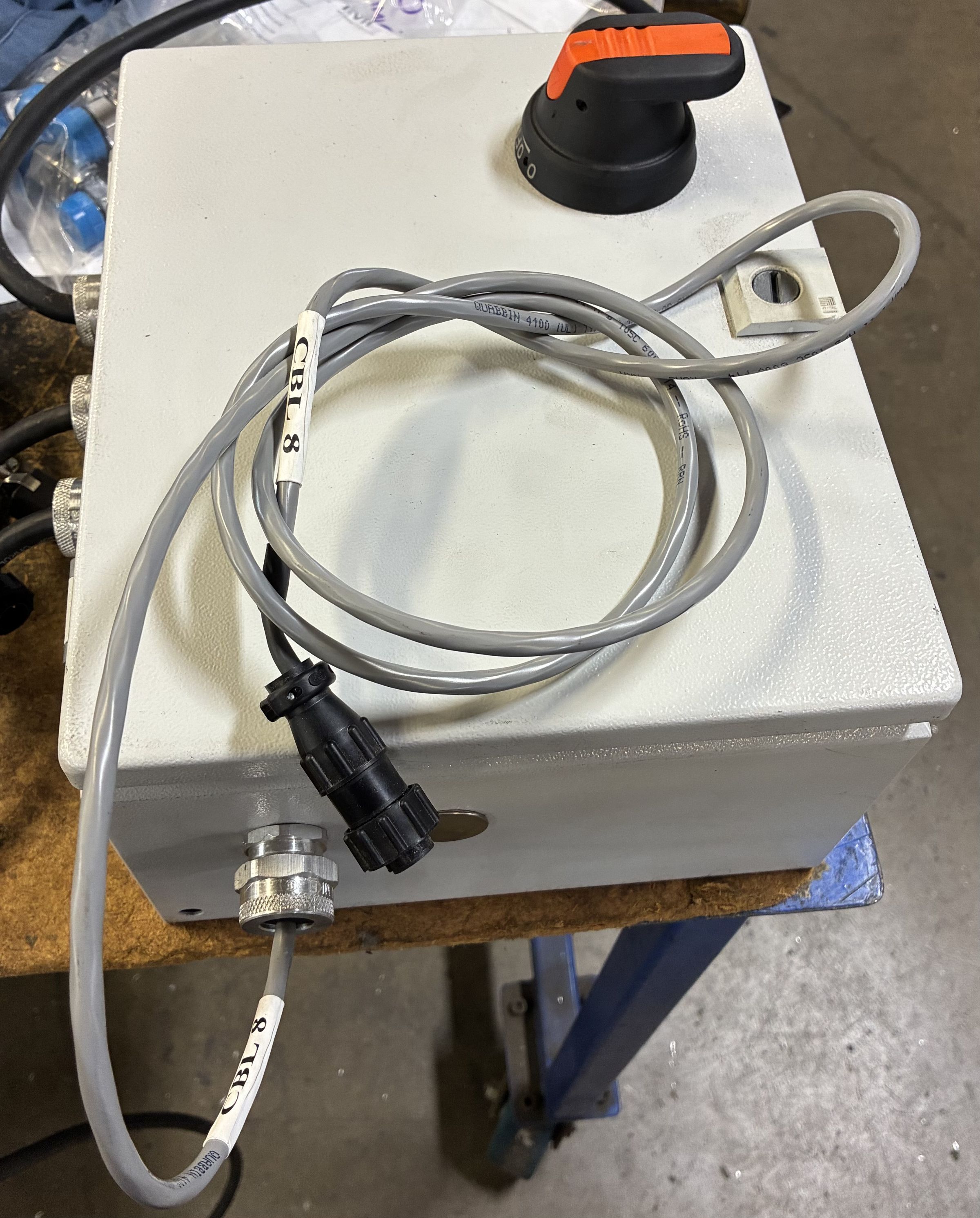

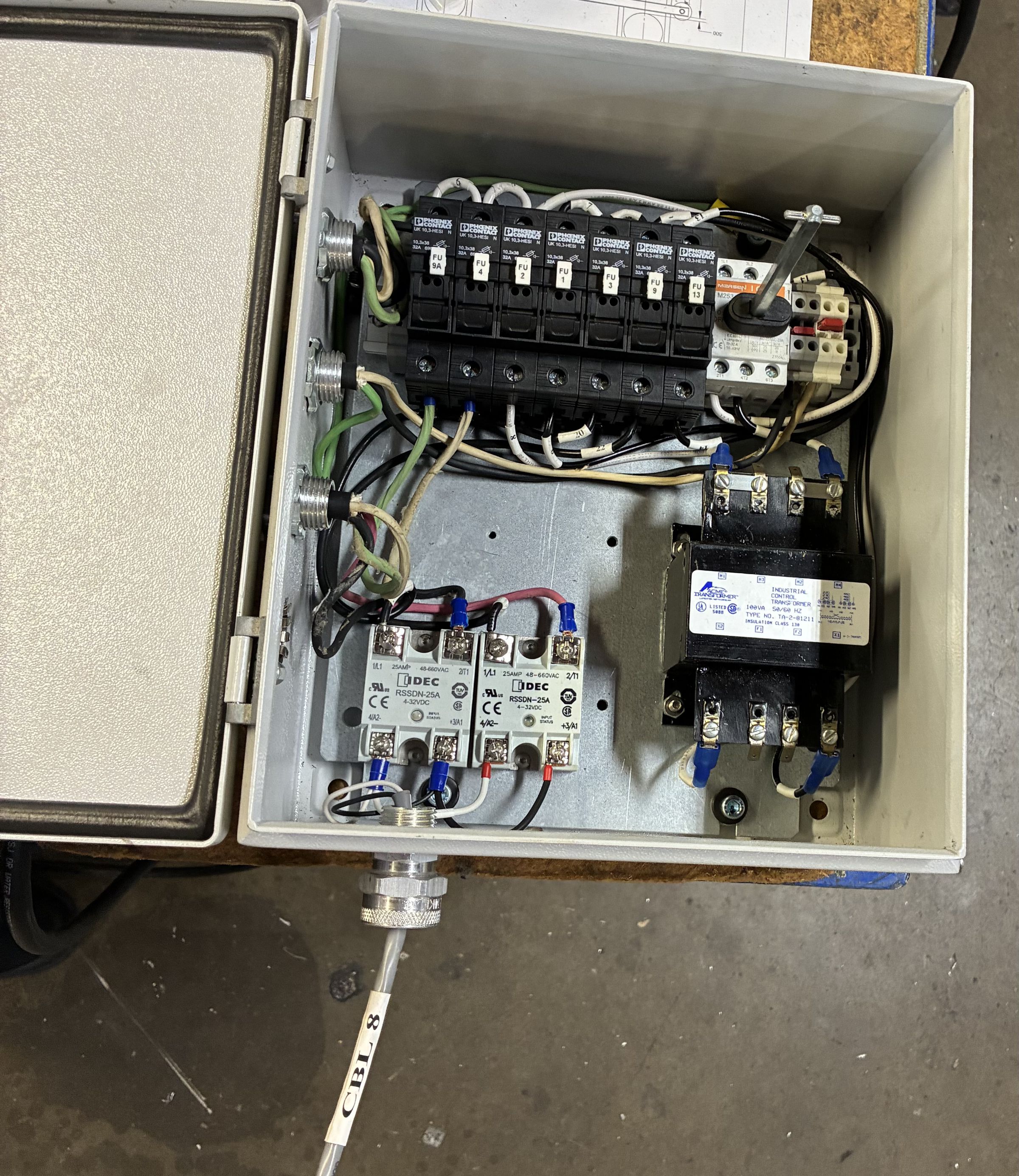

| 1. | Connects to control box P8 to Disconnect box Solid State Relay |
| 2. | Supplies 12vdc to Solid State Relay |
|
| Part # | Description | Manu PN | PDF Files | Sales Price | | 104510 | Control Box Cable 8 TEMP OUT | 19000_CABLE_8_TEMP_OUT | View PDF 1 | $160.00 | | | | | |
|
| Part Number | Description | Qty | Units | Unit
Sales Price | Total
Sales Price | Manufacturer | Manu PN | VendorNo | PDF |
| 100124 | Pin, Male, Round | 2 | EA | $2.16 | $4.32 | AMP | 202236-3 | CIRCOMP | View PDF 1 | |  |  | | | |
| 100370 | Plug, 4pin, Strain Relief | 1 | EA | $3.18 | $3.18 | AMP | 1-206062-6 | CIRCOMP | View PDF 1 | |  | | | | |
| 100388 | Plug, 4pin, Male | 1 | EA | $2.75 | $2.75 | AMP | 206429-1 | CIRCOMP | View PDF 1 | |  | | | | |
| Total Parts Price | | | | $15.00 | $15.00 | | | $160.00 | |
| Part List Price | | | | | $21.31 | | | | |
|
|
