Hot Stamping Machine Control Box Electrical Drawings |
Cable 5 True Dwell Cable |

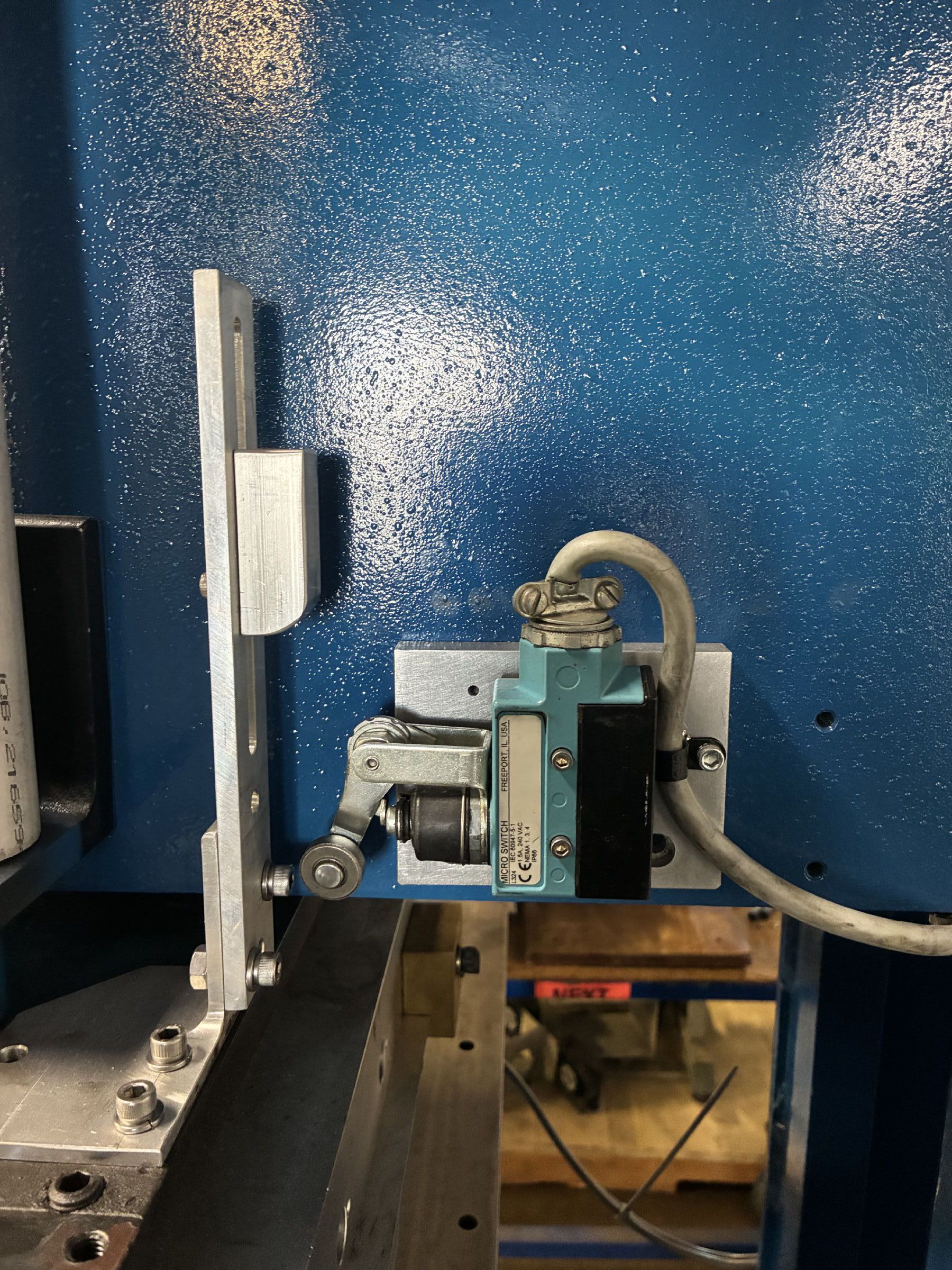

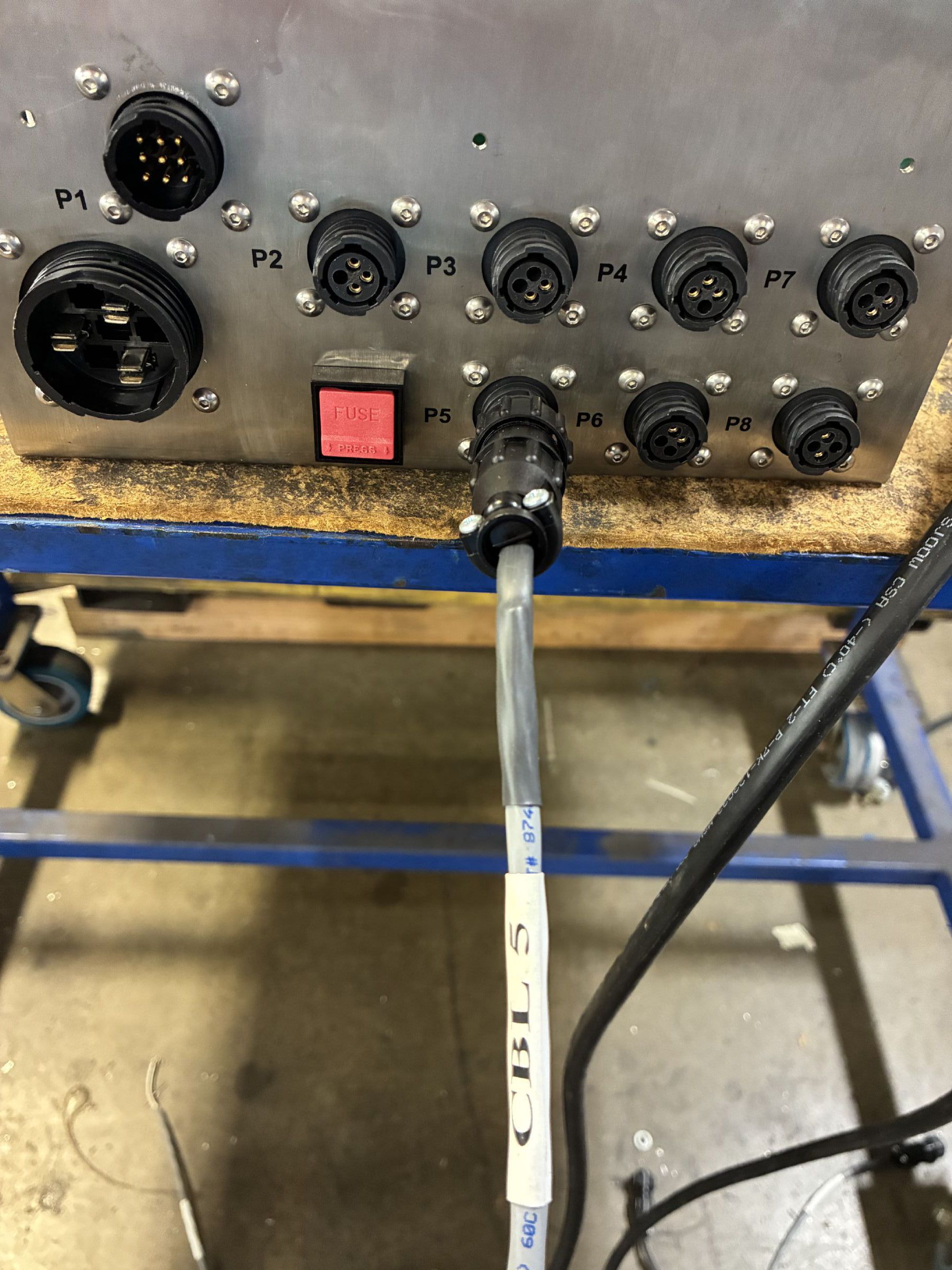

1. | Connects to control box P5 to True Dwell Switch. |
2. | Requires 1 Normally Open (NO) dry contact (Isolated) |
|
Part # | Description | Manu PN | PDF Files | Sales Price | 104507 | Control Box Cable 5 TRUE DWELL | 19000_Cable_5_TRUE_DWELL | View PDF 1 | $160.00 |
|
Part Number | Description | Qty | Units | Unit Sales Price | Total Sales Price | Manufacturer | Manu PN | VendorNo | PDF |
100124 | Pin, Male, Round | 2 | EA | $3.52 | $6.34 | AMP | 202236-3 | CIRCOMP | View PDF 1 | |
100370 | Plug, 4pin, Strain Relief | 1 | EA | $2.95 | $6.10 | AMP | 1-206062-6 | CIRCOMP | View PDF 1 | |
100388 | Plug, 4pin, Male | 1 | EA | $2.10 | $4.52 | AMP | 206429-1 | CIRCOMP | View PDF 1 | |
Total Parts Price | | | | | $16.96 | | | | |
|
|
