Hot Stamping Machine Control Box Electrical Drawings |
Cable 4 Palm Button Cable |
1. | Input to control box for palm buttons. |

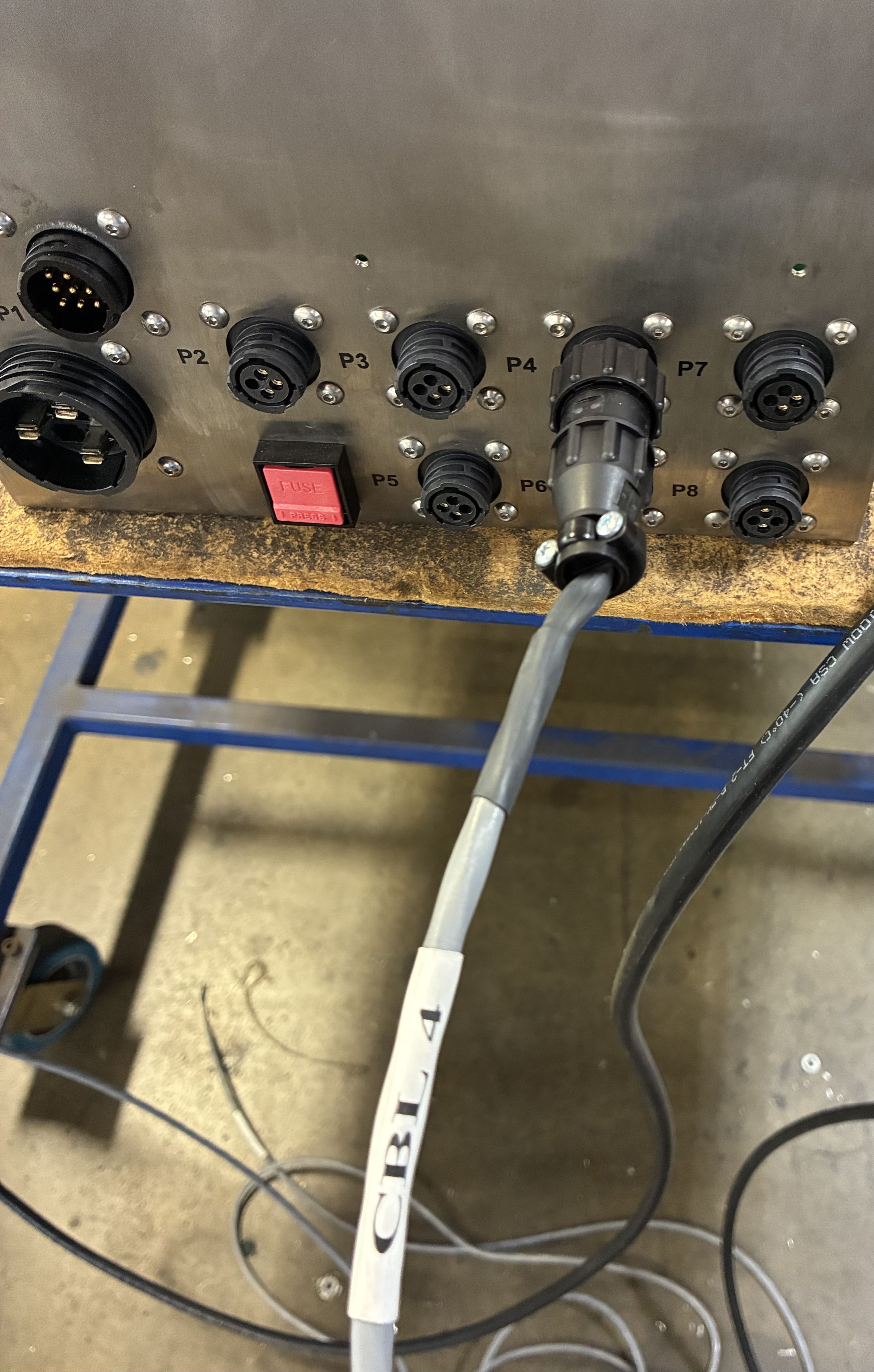

2. | Connects to control box back P4 to 3 pin female plug from palm button assembly. |
|

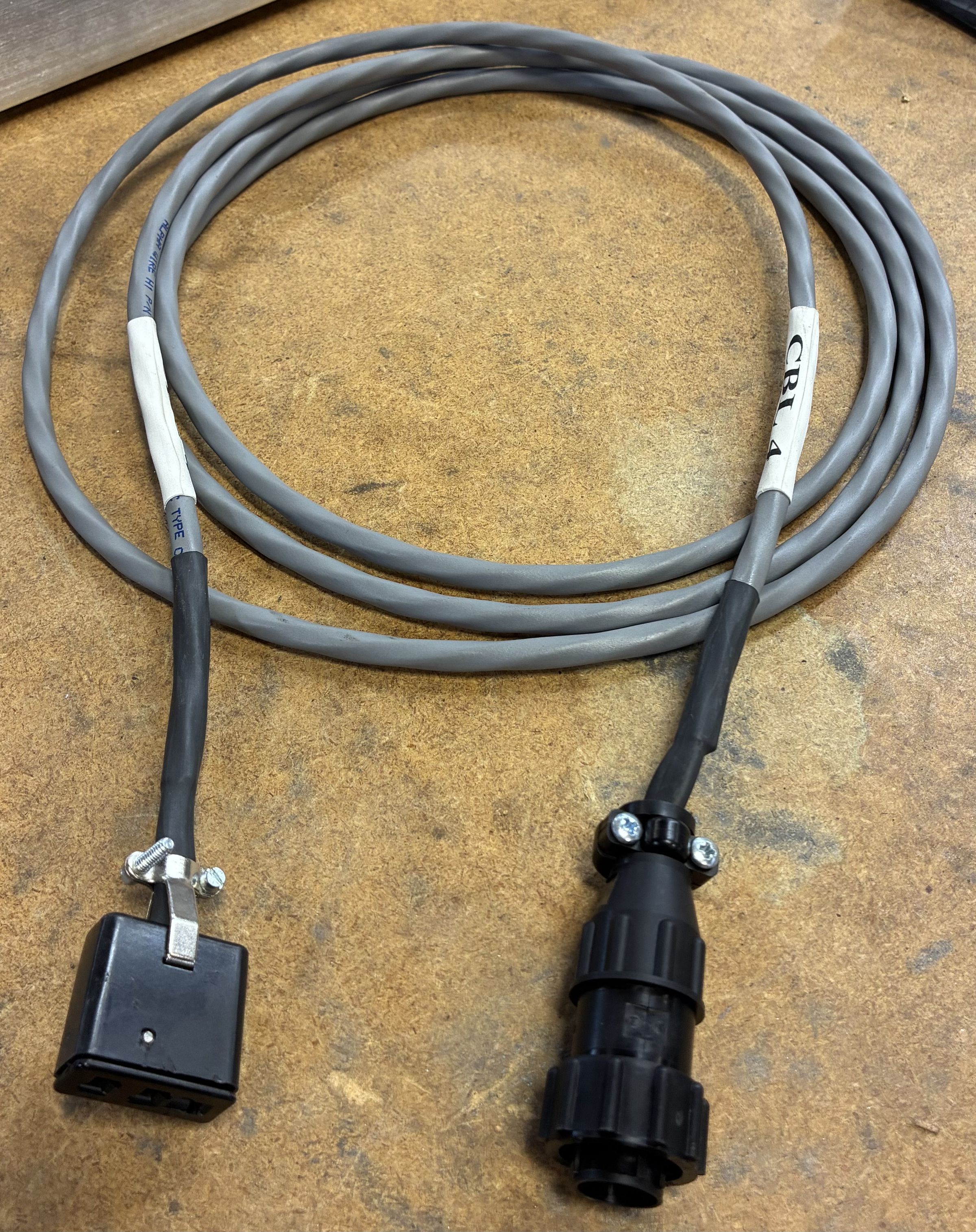

Part # | Description | Manu PN | PDF Files | Sales Price | 104506 | Control Box Cable 4 PB SWITCH | 19000_CABLE_4_PB_SWITCH | View PDF 1 | $160.00 |
|
Part Number | Description | Qty | Units | Unit Sales Price | Total Sales Price | Manufacturer | Manu PN | VendorNo | PDF |
100124 | Pin, Male, Round | 3 | EA | $5.28 | $9.51 | AMP | 202236-3 | CIRCOMP | View PDF 1 | |
100370 | Plug, 4pin, Strain Relief | 1 | EA | $2.95 | $6.10 | AMP | 1-206062-6 | CIRCOMP | View PDF 1 | |
100388 | Plug, 4pin, Male | 1 | EA | $2.10 | $4.52 | AMP | 206429-1 | CIRCOMP | View PDF 1 | |
100741 | Plug, 3pin, Female, Square | 1 | EA | $4.72 | $4.72 | None | None | None | View PDF 1 | |
Total Parts Price | | | | | $24.85 | | | | |
|
|
